Drum Inductor

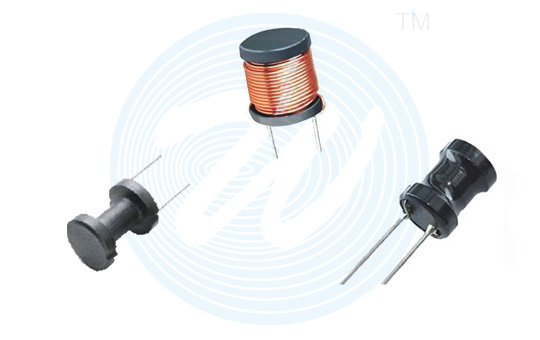

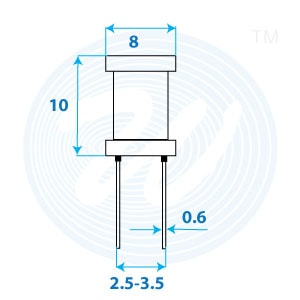

Drum-Core-6X8

smps_transformer Responsive image

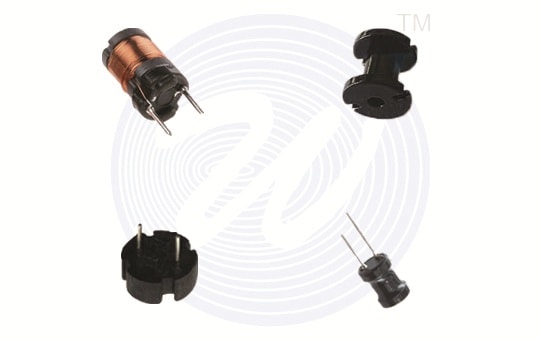

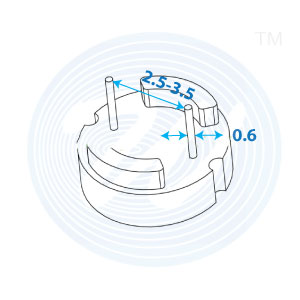

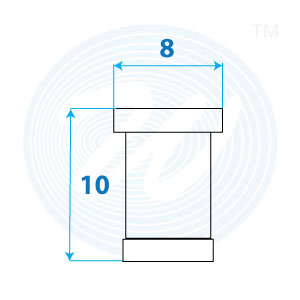

Drum-Core-6X8-With-Base

smps_transformer Responsive image Responsive image
Applications
Inputs and Output filters
Non-isolated Buck Converters etc
Drum Core Inductance @ 1KHz Roted Current DC Resistance
DRUM-CORE-6X8 3.3μH-1mH±20% 1mA-100mA 20mΩ-4Ω

Note: RoHS compliance is available on most products, subject to our confirmation.

An ISO 9001 : 2015 certified Design, Manufacture and Supply of Electronic Transformer, Chokes and other Magnetic Components for Electronics Applications.
