smps transformer
EE-SERIES

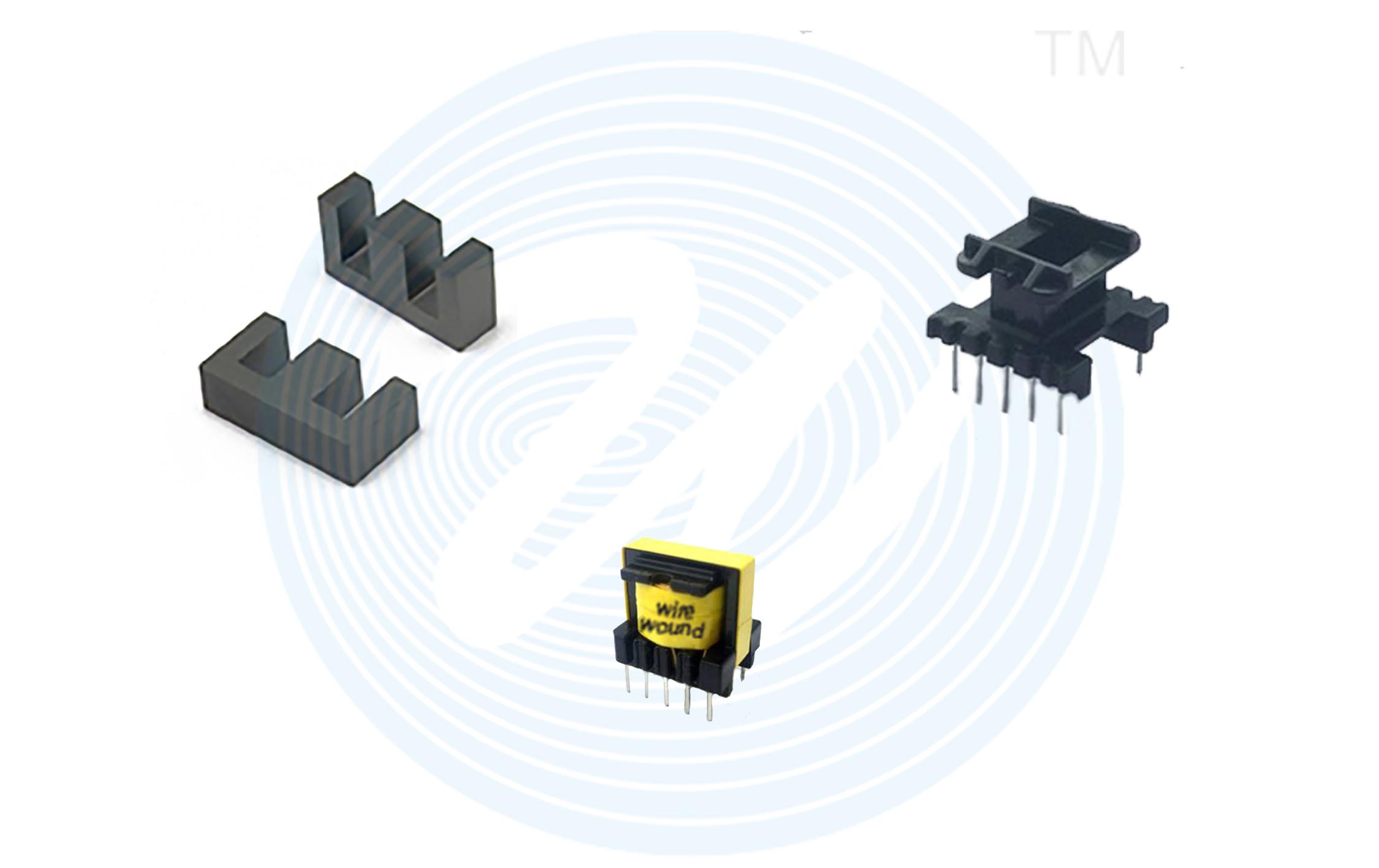

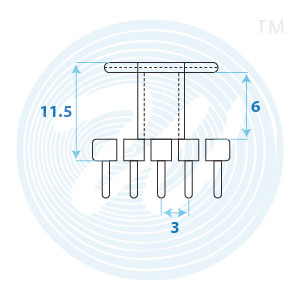

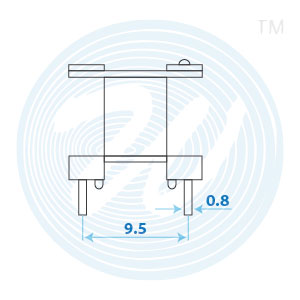

EE16X6X5-10P-V

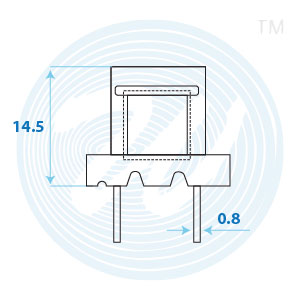

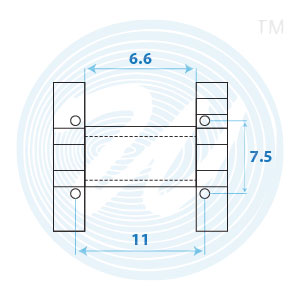

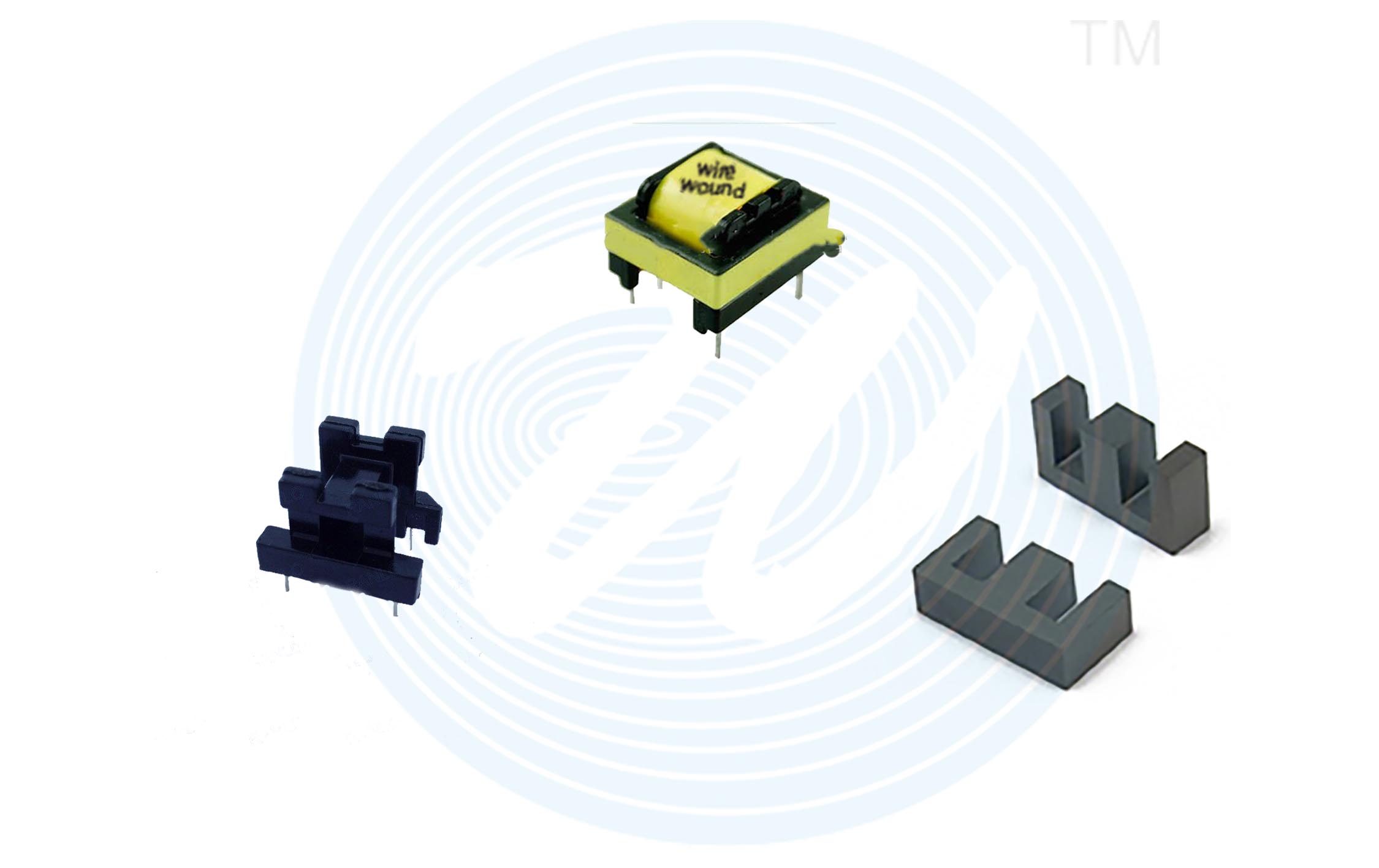

EE16X7X5-4P-H

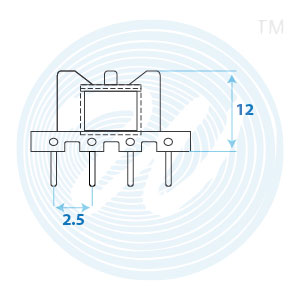

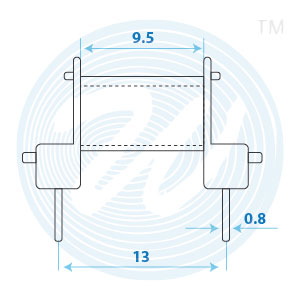

EE16X7X5-8P-H

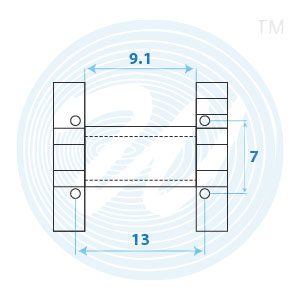

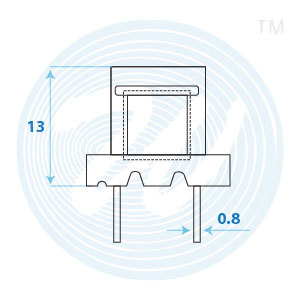

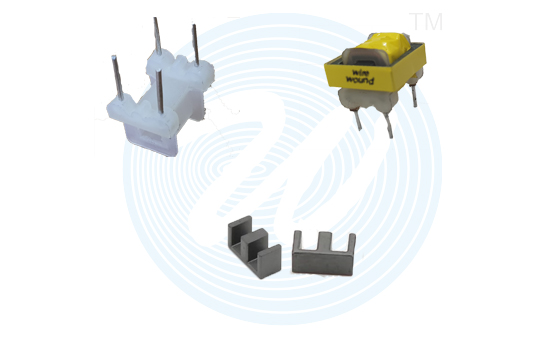

EE16X8X5-4P-H

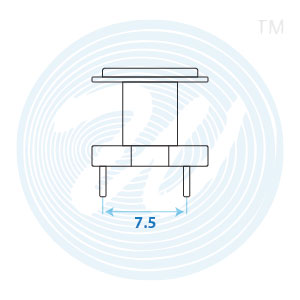

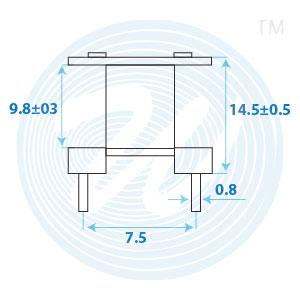

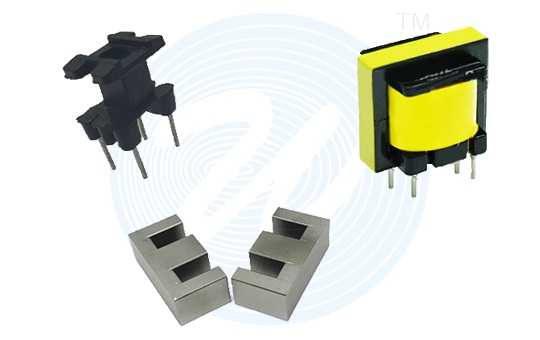

EE16X8X5-4P-V

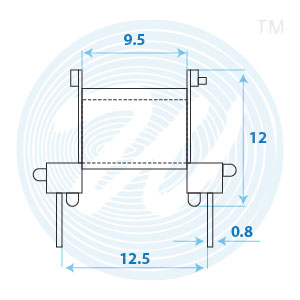

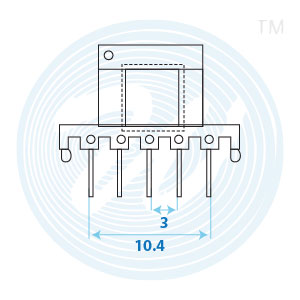

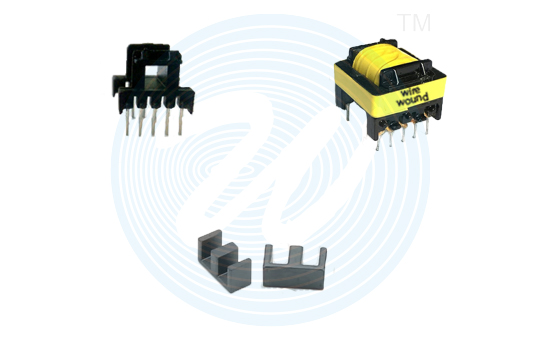

EE16X8X5-10P-H

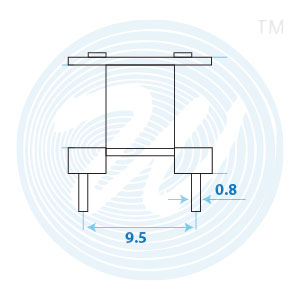

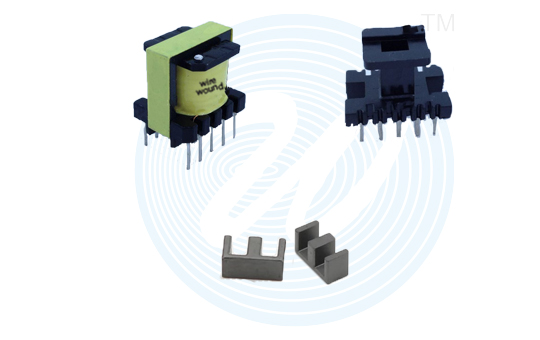

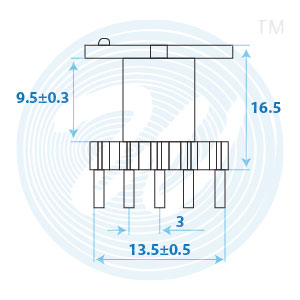

EE16X8X5-10P-V
Applications |
|---|
| Chokes for EMI applications |
| Transformer for LED drivers |
| Transformer for SMPS power supply |
Features |
|---|
| Inductor with Single winding as per user design |
| Multiple section chokes are also available |
| Transformer with multiple windings and multiple wires as per user design |
| Primary inductance standard +/-10%, also available +/-5% on request |
| Leakage inductance below 3% of primary inductance |
| Dielectric strength Primary to Secondary min 1.5KV |
